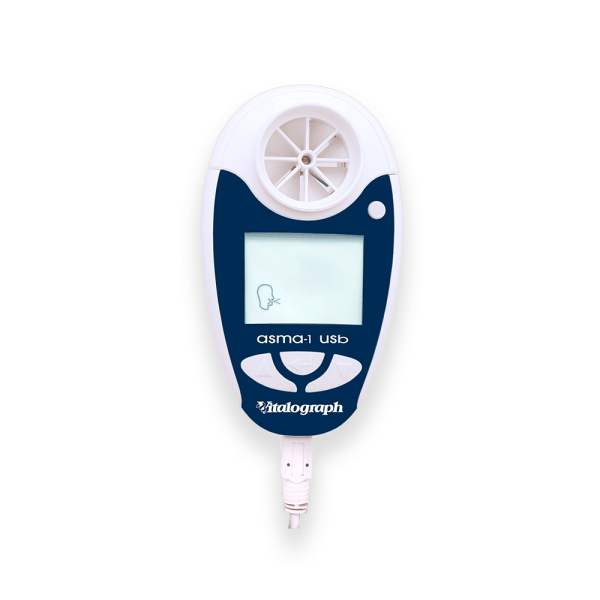

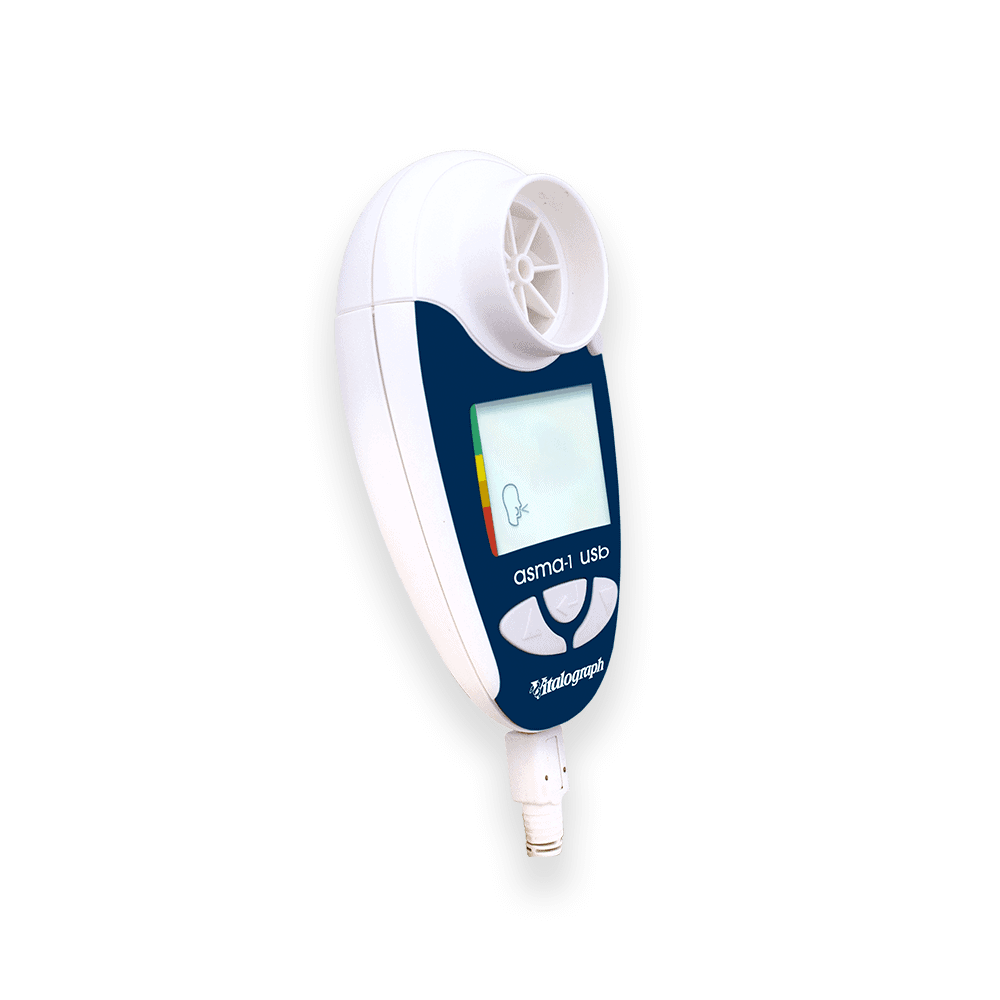

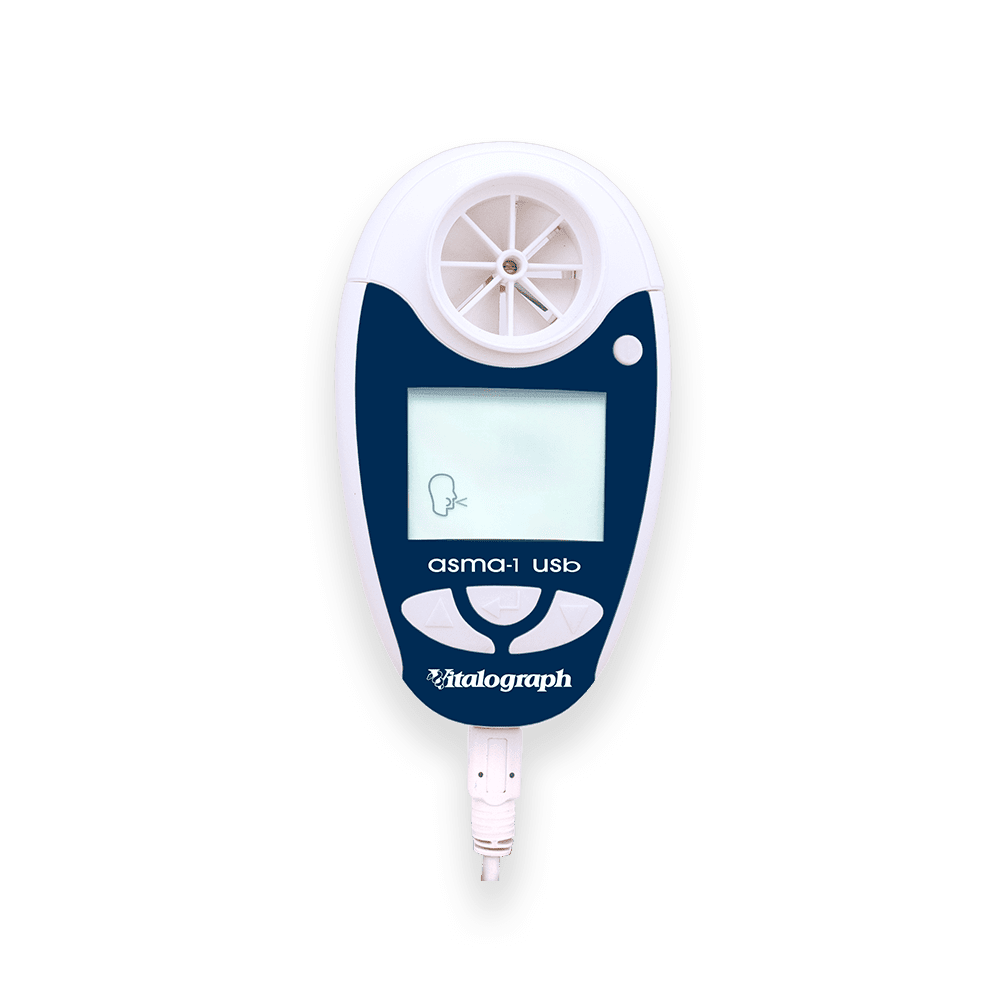

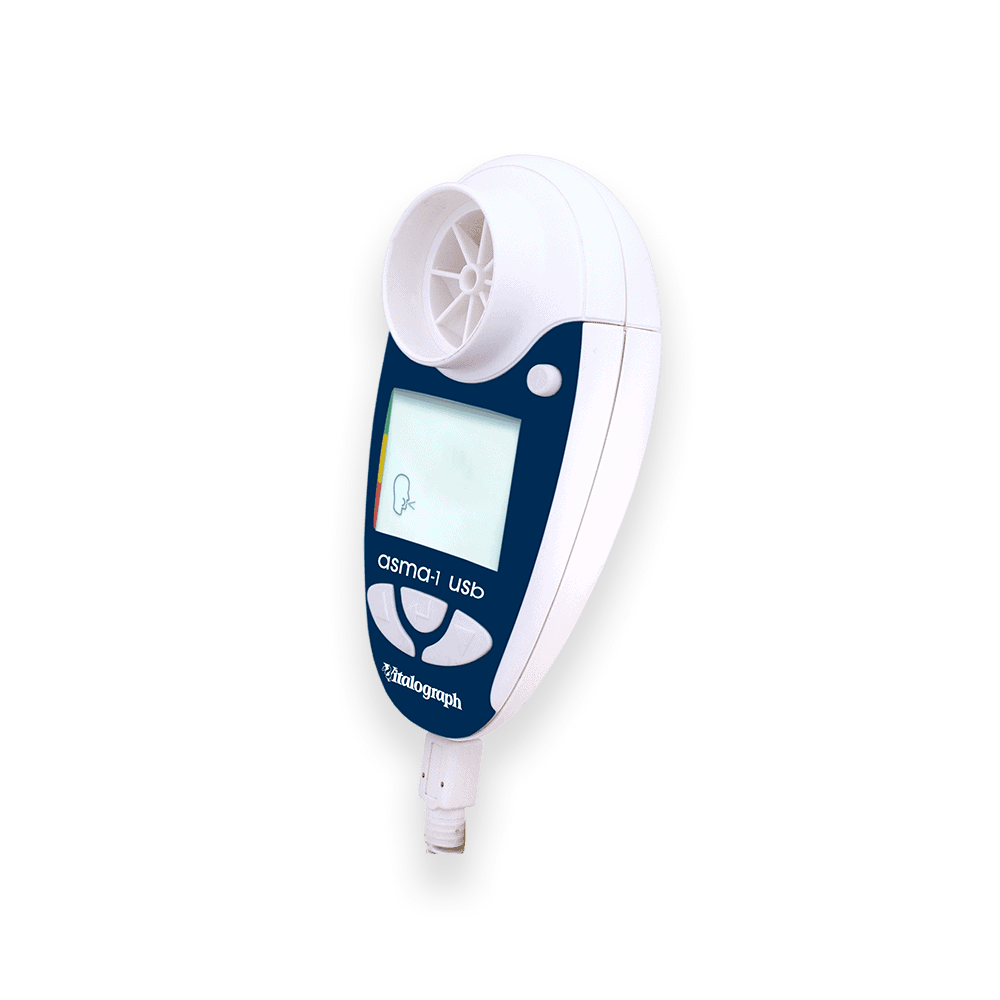

Vitalograph Asma-1 USB

For the home monitoring of asthma with electronic & hard copy reports

The asma-1 USB is an asthma monitoring device that combines all the features of the asma-1 with the ability to link to your PC. Session data and device ID may be transmitted to Vitalograph Reports, Spirotrac or an API developers’ kit is available for providers of e-Diary, home hub and telemedicine solutions.

258.20

ex VAT
317.59
inc VAT

Shipping 1-2 Business Days

Trading for over 25 Years

The Vitalograph asma-1™ is a lightweight home use electronic respiratory monitor that measures PEF and FEV1. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards. Links easily to other devices by USB for reporting.

  • Measures FEV1 and PEF.
  • Displays % of personal best FEV1.
  • Electronic record – no need for record cards.
  • Set unique ‘personal best’ zones for test subjects.
  • Automatically stores best values in a test session.
  • Quality of blow indicator.
  • 600 test memory.
  • Suitable for use with Bacterial Viral Filters (BVF™).
  • Compliant with: ATS/ERS 2019 and ISO 23747 / 26782 / 13485
  • Large, easy to read display.

Includes Vitalograph Reports to generate PDF reports to PC with:

  • Information presented in tables and graphs.
  • Customizable report headers.
  • Ability to add comments to the report.
  • Subject ID and name fields.
  • Age, height, gender, and weight fields optional.

One of the 4000 Series of respiratory monitors and screeners, the asma-1 comes with:

  • Pouch
  • Instructions for use
  • USB cable
  • 2 x AAA Batteries
  • Plastic mouthpiece for single patient use
  • Vitalograph Reports Software

Features:

  • Indicates blow quality, number of blows and diurnal variation;
  • Device ID automatically transmitted with the data;
  • Ability to add comments to the report;
  • Optionally separate graphs of am and pm sessions;
  • Information presented in tabular and graphical form;
  • Can automatically name the PDF file;

asma-1 Reports Include:

  • Subject ID, name, age, height, gender and optional weight field;
  • Time/date stamp for each session;
  • Best PEF and FEV1 fields automatically populated;
  • BMI calculated (from height and weight);
  • Personal best FEV1, PEF and zones as set in asma-1;
  • Trend graphs of FEV1 and PEF;
Model 4000
Dimensions 109mm (length) x 63mm (width) x 42mm (height)
Accuracy Better than ± 3% (FEV1), ± 10% (PEF)
Flow Detection Principal Stator rotor
Back Pressure Less than 0.15kPa/L/second @ 14L/s
Measurement Range PEF: 25 – 840 L/min BTPS FEV1: 0 – 9.99 L BTPS
Maximum Test Duration 1 second
Quality Check Time to Peak Flow >120ms or a cough detected in the first second
Power Supply 3V (2 x 1.5V AAA batteries)
Battery Life 3 months of use, 3 tests per day
Performance Standards & Guidelines ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
Communications USB2.0/3.0
PC Requirements Windows® 7, Windows® 8 or Windows® 10
Auto Power Down Time 2 minutes



Related Documents:

Instructions For Use

Cleaning Instructions

Product Brochure
