MESI MTABLET SPIRO – Authorised Distributor
The most versatile digital spirometer
- Wireless mode of operation for practice or home-care use.
- Pneumotachograph technology with integrated self-calibration for accurate measurements at any time.
- Automatic best breath selection with a clear and intuitive measurement review.
Additionally, if you own a MESI mTablet System and want to add an extension, please select from the options below:
€0.00 – €3,357.11
Shipping 1-2 Business Days
Trading for over 25 Years
Why MESI mTABLET SPIRO?
- Multiple measurement modes and parameter calculation options: quick, primary or advanced spirometry app package.
- Automatic selection of the best of all repeated maneuvers with the BestBreath™ detection.
- Detailed report with the ability to switch between charts and values for a clear interpretation.
- Option to compare different measurements on the same screen through MESI mRECORDS.

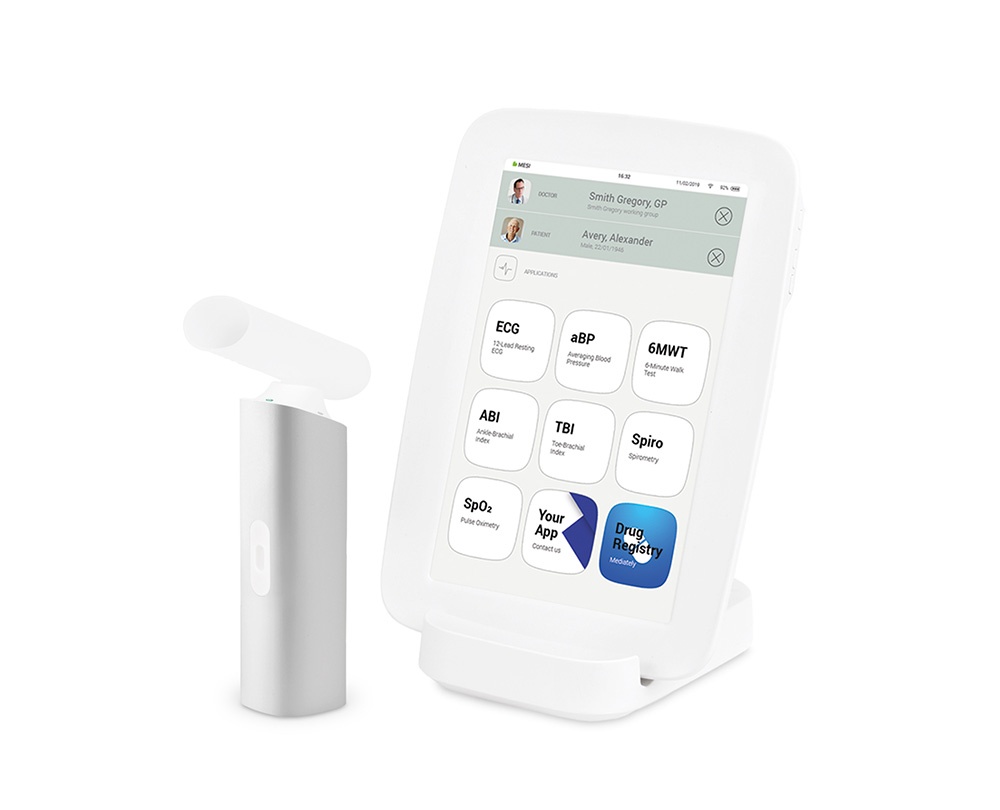

The MESI mTABLET SPIRO is a digital, tablet-based spirometer that offers a wide range of examination, reporting and viewing options. Thanks to the wireless, battery-powered spirometry module, the mTABLET SPIRO offers a high degree of flexibility and can also be used on the move without any problems.
The pneumotachograph automatically selects and evaluates the best breath with the help of BestBreath™ detection. The tablet’s display not only shows an animated flow-volume curve in real time, but also the temperature, humidity and air pressure.
The MESI mTABLET SPIRO has an integrated self-calibration feature that ensures precise measurement results at all times. With the help of MESI mRECORDS, different measurements can be compared directly on the screen and thus the patient’s course of disease can be evaluated.
Maximum hygiene is ensured by the separately available accessories in the form of disposable mouthpieces and disposable filters, which effectively prevent the transmission of infection from one patient to the next.
With the help of different modules and expansion packages, the MESI mTABLET SPIRO can be individually expanded to include various diagnostic options, such as ABI measurement, ECG, SpO2 or blood pressure measurement.
Product Details
- MESI mTABLET SPIRO
- Pneumotachograph
- Integrated self-calibration
- Precise measurement results
- Automatic selection of the best breath (BestBreath Detection)
- Real-time display of temperature, humidity and air pressure
- Warning messages in case of malfunctions or incorrectly performed tests (coughing, dropping the mouthpiece, etc.)
- Primary spirometry is included as standard in the package
- Quick spirometry and advanced spirometry are available as separate, chargeable app packages
- Clear and intuitive overview of measured values
- Detailed report with the option to switch between charts and values
- Option to compare different measurements on one screen (with MESI mRECORDS)
- Wireless module for maximum flexibility
- Also suitable for mobile use
- Individually expandable with various diagnostic modules and extension packages
- Hygienic disposable mouthpieces and disposable filters are available for the mTablet SPIRO
New MESI mTABLET SPIRO Advanced
The MESI mTABLET SPIRO is not only a versatile digital spirometer. Multiple measurement modes and parameter calculation options (quick, primary or advanced) make it an indispensable tool for diagnosing asthma, chronic obstructive pulmonary disease (COPD) and other conditions that affect breathing. Apps include:
Three Types of Spirometry
MESI SPIRO Lineup
Demonstration of Spirometry (SPIRO)
MESI mRECORDS
Measurement review and storage
|
---|
Enhanced View
• Display of three best curves
• VT6 curve display
A Part of the MESI mTABLET System
MESI mTABLET is designed and produced for healthcare professionals with modern practice in mind.
- Our certified medical tablet is a unique healthcare solution, integrating wireless diagnostic modules, patient records and medical apps in one system.
- All measurements and patient data are automatically stored and synchronized with the built-in electronic medical record – MESI mRECORDS that is available on the MESI mTABLET and from any web-enabled device, simply and securely.
- Performance and functionality can be enhanced with numerous software and diagnostic tools available in the medical marketplace – MESI mSTORE.
MESI mTABLET Wireless Diagnostic Extensions and Modules
All add-on extensions and modules integrate seamlessly with the MESI mTABLET System and can be added at any time. Add-on diagnostic extensions and modules allow medical practitioners to perform the following measurements:
Additional Add-on extensions:
-
- ABI
- ECG
- Toe-Brachial Index (TBI)
- TBP
- ABP
Additional Add-on modules:
-
- BP
- SP02
Learn More
Our customer service team can help with a solution that best suits your practice. Email [email protected] or call 01 8665727 for more information.
Technical Details
- With high-performance lithium-polymer battery
- Approx. 150 examinations or 4 hours of continuous use with one battery charge (module)
- Interfaces: DICOM, HL7, XML, GDT, JSON
- Protection class: IP30
- Display resolution: 1280 x 00 px IPS
- Internal tablet memory: 8 GB
- Connectivity: Wi-Fi, Bluetooth
- Equipped with a mono speaker and a 5 MP camera
- Charger dimensions and weight: 40 x 20 x 3.8 cm, 675 g
- Module dimensions and weight: 4 x 4 x 1.4 cm, 220 g
- Complies with EN 60601-1, EN 60601-1-2 and EN ISO 26782
MESI mTABLET SPIRO Brochure
Technical Specifications: MESI mTABLET
Processor: CPU Quad ARM Cortex A53 @ up to 1.2GHz per core
Barcode reader: 1D/2D barcode imager
Screen: 1280 x 800 px IPS
Memory: 8GB
RAM: 1GB
Connectivity: Wi-Fi 802.11b/g/n and 2.4 GHz single band Bluetooth 4.1
Camera: 5MP
Environment: IP20
Audio: Mono speaker
Security: 2 step authentication – password, SMS code
Connectivity: Wi-Fi 802.11b/g/n, Ethernet module, Bluetooth 2.1 + EDR
Congratulations Mesi! MESI, Ltd. was selected for the Google for Startups Accelerator: Europe. Learn more Link: https://www.mesimedical.com/another-big-success-mesi-was-selected-for-the-google-for-startups-accelerator-europe/
Delighted to share that MESI earns the MDSAP Certification. Read more https://www.mesimedical.com/mesi-earns-the-mdsap-certification/
