seca CardioPad-2

Ultra-portable, easy to handle and fast – the seca CardioPad-2 Time to increase your mobility for ECG recordings with the ultra-portable seca Cardiopad-2. As the next generation of our innovative…

4,169.55

ex VAT
5,128.55
inc VAT

SKU: seca CardioPad-2 Categories: , Tags: ,

Shipping 1-2 Business Days

Trading for over 25 Years

Ultra-portable, easy to handle and fast – the seca CardioPad-2

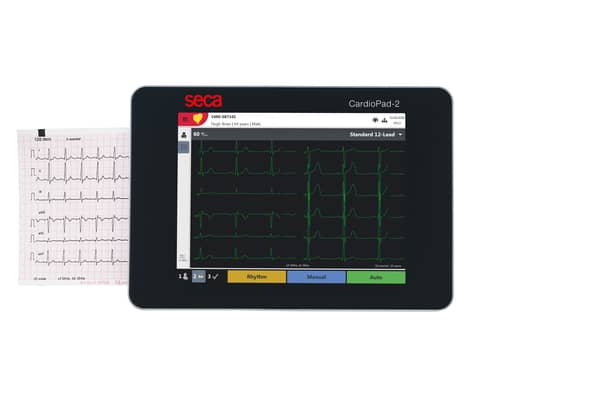

Time to increase your mobility for ECG recordings with the ultra-portable seca Cardiopad-2. As the next generation of our innovative and trendsetting seca CardioPad it has become even lighter. Although it’s extremely compact, it features an in-built printer, renders 12 ECG traces simultaneously and is capable to process data to your the EMR system. It is fully equipped and has all functions aboard to support fast, precise and comfortable cardiac diagnostics.

Large Range of Interpretation Algorithms

The seca CardioPad-2 is equipped with a vast range of diagnostic functions like the CCAA (optional). The Culprit Coronary Artery Algorithm is used in emergency departments and outside the hospital whenever a fast decision on chest pain is required immediately. It locates the obstruction site in the coronary artery and thereby the size of the cardiac area at risk. The ETM Sport interpretation module is especially designed for athletes and is based on the Seattle Criteria. Furthermore a large range of QTc formulas are provided, for example Bazett, Fredericia, Fremingham or Hodges.

The ECG That Advises You

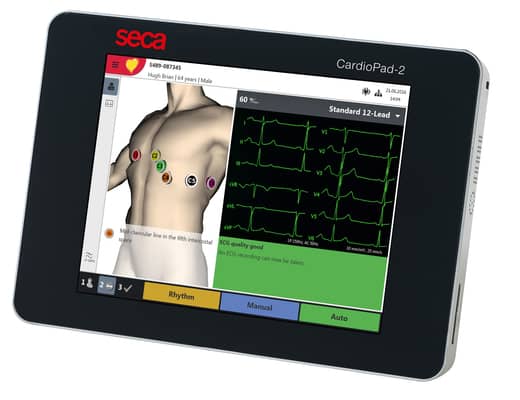

With the anatomical hook up adviser electrodes are always placed correctly. It shows a rotatable and zoomable 3D-body with the correct positions of all ten electrodes. An overview of all 12 channels with colour-coded lead quality check safeguards every ECG acquisition. In case of lead reversal, warnings and misplaced electrodes are immediately displayed before ECG acquisition.

Product Properties

  • Ultra-lightweight easy to use device, weighing only 1.1kg
  • Compatible with all leading EMR systems – emis, SystmOne, Vision and others
  • Wi-Fi connectivity and seca link software included as standard
  • Anatomical hook-up adviser – helps to correctly place the electrodes
  • Lead reversal, warnings and misplaced electrodes are immediately displayed before ECG acquisition
  • High volume internal memory: storage of up to 350 ECGs
  • Advanced ETM Interpretation, with ETM Sport (Seattle Criteria)

Functions

  • Save function
  • Print function
  • ETM with ETM Sport Interpretation
  • QTc formulas = Bazett, Fredericia, Fremingham or Hodges
  • Wi-Fi
  • Ethernet
  • QTC interval – Ideal for Mental Health
  • Preview screen feature

Key-Technical Data

  • Net weight – 0.2 sts 1.1 kg
  • Product width -230 mm
  • Product height-160 mm
  • Product depth-30 mm
  • ECG Channels-12
